C-Thru Separator Tramp Oil Separator System

Description

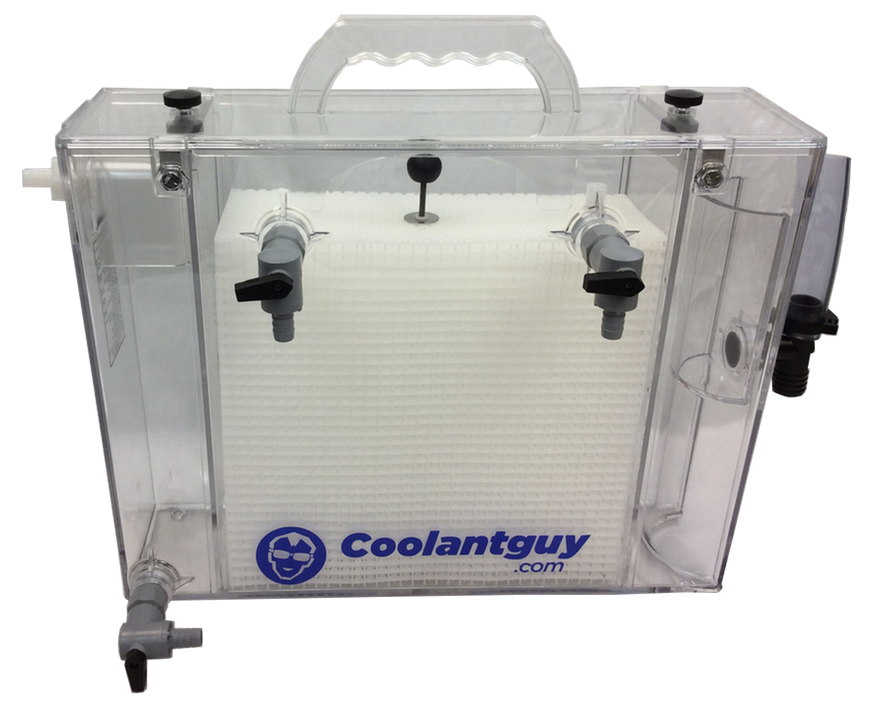

C-Thru® Separator is a patented design tramp oil separator. It is injection molded, producing a seam free, extremely durable tank. Carefully chosen chemical resistant resin can withstand aggressive chemicals such as sodium hydroxide, sulfuric acid, mineral oil, kerosene, diesel fuel and isopropanol. The tank has withstood being dropped from over 15 feet onto cement, hit with a 8 pound sledge hammer and driven over by a 10,000 pound truck.

• Extended fluid life • Reduced wast disposal • Increased tool life • Simple and quick installation • No consumables • Compact • No floor space utilized • Easy to clean • Patented, transparent design

• CNC Mills • CNC Lathes • Grinders • Wash Systems • Dip tanks • Mop water reclaim • Evaporator hold tank • Coolant recycling tanks

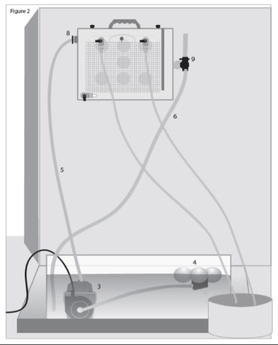

1. Attach the C-Thru® Separator to the machine using the magnetic mount. 2. A float (4) connected to a pump (3) electric or air draws tramp oil from the surface of fluid and pumps it into the C-Thru® Separator (8). 3. As the fluid and tramp oil flows through the oil loving media pack the oil gathers and floats to the top of the C-Thru® Separator. The oil is then drained into a waste container 4. Clean fluid is then returned (6) to sump.
